Chemetron Gas Outlet

Chemetron medical gas outlets include wall mount type and rough-in assembly type.

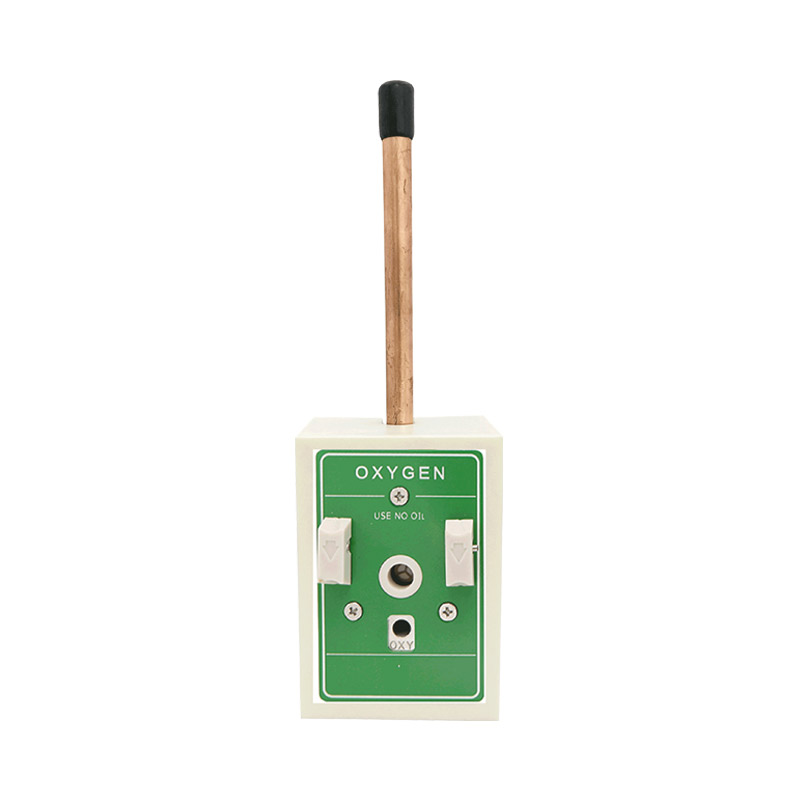

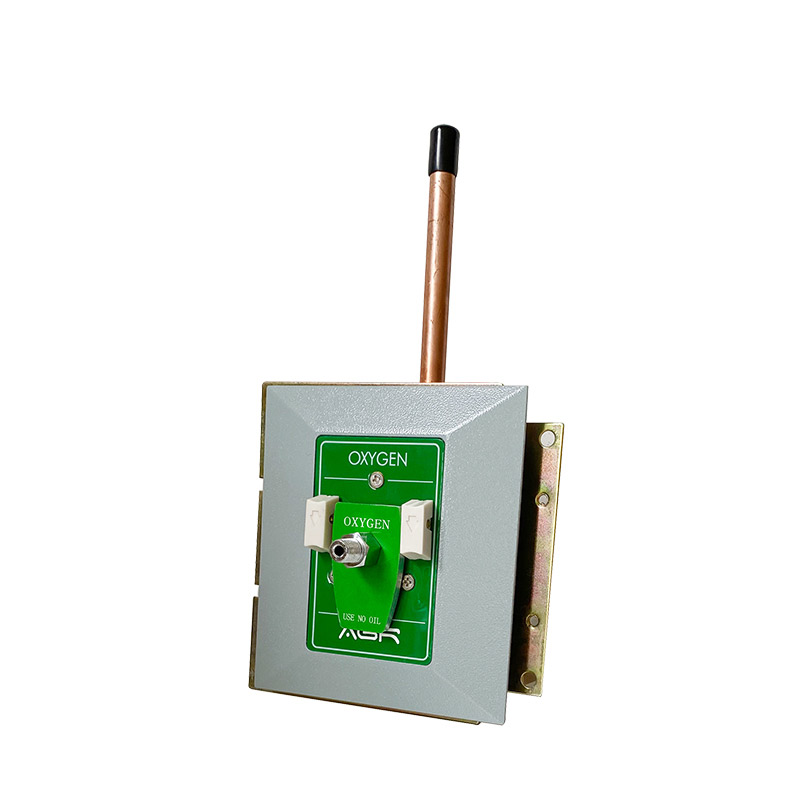

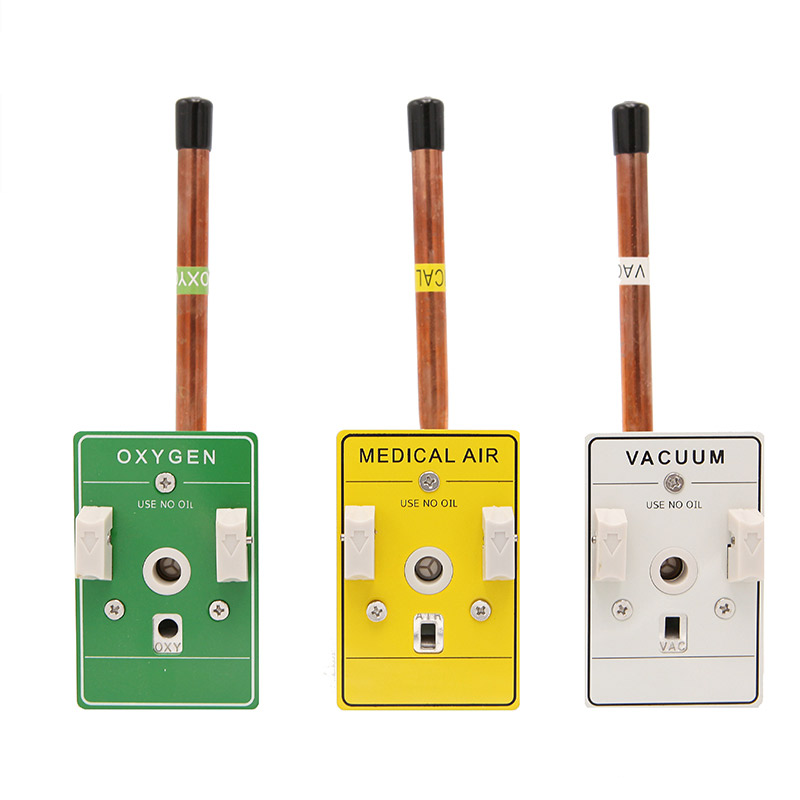

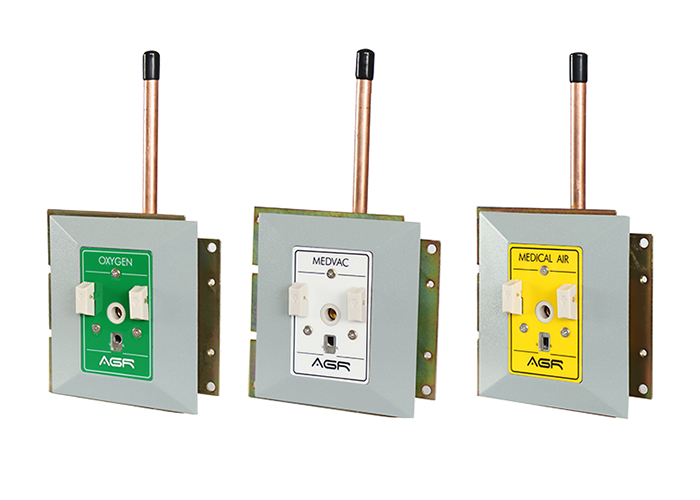

Wall mount type is using installed on the wall, available in plastic and metal covers.
Rough-in assembly type with a plastic decorative cover is using on the bed head unit.

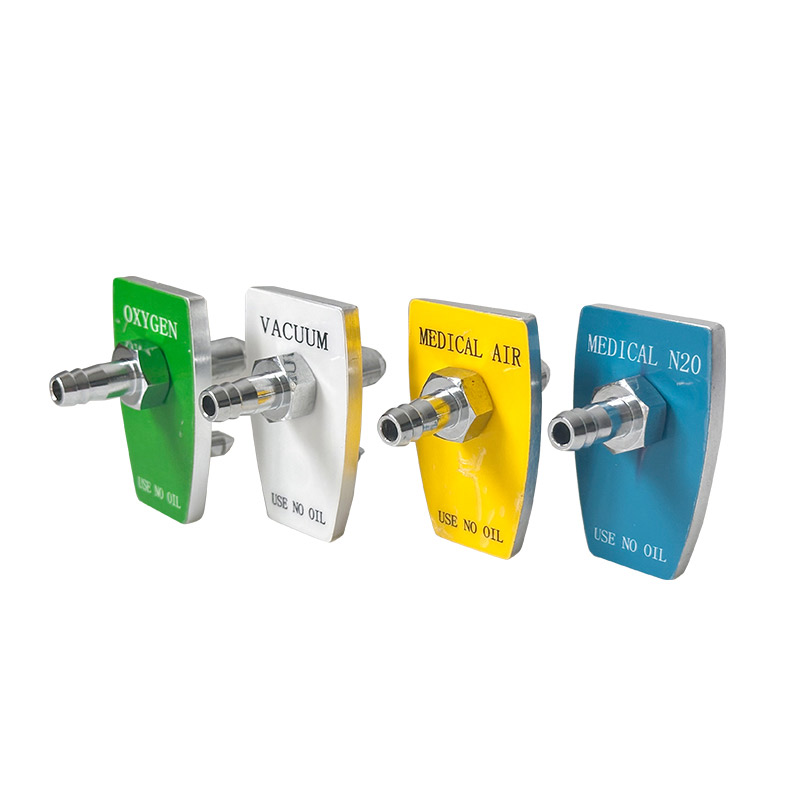

AGR gas outlets can provide 4 kinds of gas, including oxygen, medical air, vacuum, nitrous oxide. Different gases can be equipped with corresponding gas adapters.

Specifications

• Complies with NFPA 99 and CGA Standard
• 360° swivel inlet pipe for easy installation
• Insertion and extraction 10000 times without failure
• Working pressure: 4-8bar
• O.D. Size: 8mm, 10mm, 12mm K type copper pipeline
• 100% pressure and leak-tested, can be used safely and securely
• The outlet with two-stage one-way valve for easy maintenance without cutting gas supply
• NFPA full-color standard for easy gas identification and the gas name is marked on the outlet bracket and chrome-plated brass outlet valve body, avoid installation or use errors
• Accepts only Chemetron gas connection fitting
