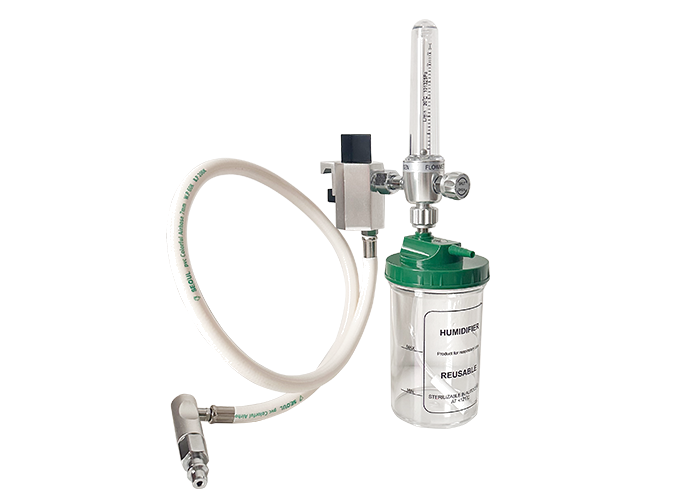

Pendant Type Oxygen Inhaler

AGRMed oxygen flowmeters have the function of humidifying and filtering oxygen or medical air. It has precise flow rates for measurement, easy to use, and safe. At the pressure dome and accuracy is tested which ensures the safety of the patient, accuracy is ± 5% of the displayed value. Calibrated at 50 psi inlet pressure.

Medical oxygen flowmeter rate available 0-3LPM, 0-5LPM, 0-10LPM, 0-15LPM, 0-30LPM, 0-70LPM for adults and pediatric therapy. Labeling ISO or US(NFPA) colors code allows for easy gas identification. Each flowmeter shall be supplied with gas specific probes and only attach to the corresponding medical gas outlet. Include BS, DIN, AFNOR, JIS, OHMEDA, DISS, CHEMETRON, etc. Quickly connector size comes with a standard 1/8”.

Specifications

• Made of copper, CNC precision processing
• Flow tube and humidifier body use high-strength polycarbonate plastic, the ball is stainless steel
• High-temperature resistance
• Backpressure compensated and calibrated at 50 psi
• Installed can be wall or rail mounted
• Input pressure: 4.5bar ± 0.5bar
• Accuracy: ± 5% read value
• Standard inlet connection: ISO G1/8“

---
