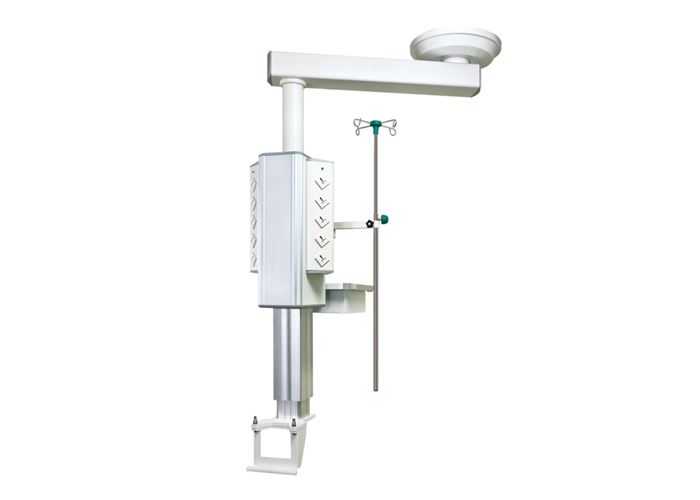

Single Arm Vertical Lifting Pendant

Single arm anesthesia pendant and Electric single arm anesthesia pendant can hanging cavity car or anesthesia machine. The suspension system is fixed automatically with two anchors.

It can be fitted with a large range of accessories: infusion rack, platform, metal basket, light, telephone output, medical rail, or other accessories upon needs &
requirements of the workplace concerned.

Specifications

• Single arm anesthesia pendant
• The 340-degree range of arm rotation
• One horizontal arm (900 mm) adjustable dimensions
• Height of Pedestal : 800mm
• Height of lifting : 300mm
• Aluminum profile, electrical device separated in the cabinet
• Ceiling plate support system
• Mechanic brake (Optional pneumatic brake)
• Load capability: 200 kg
• Shelf loading : ≤80kg
• Electricity : 220V, 50Hz ;110V, 60Hz
• More monitor tables, gas outlet, electric and drawers can be adjusted according to customer needs.

Standard Configuration

• Electrical Socket: 10pcs Universal 3-Pin socket
• Grounding Terminal: 2pcs (With grounding cables)
• Medical Shelves: 1pcs (Size: 400*450mm)
• Drawer: 1pcs
• IV Pole: 1pcs(Extension arm optional)
• Storage Basket: 1pcs(SUS304, 146*156*246mm)
• Rj15: 1pcs
• Rj45: 1pcs
• Gas outlets: 4pcs
• Flange not included

---
