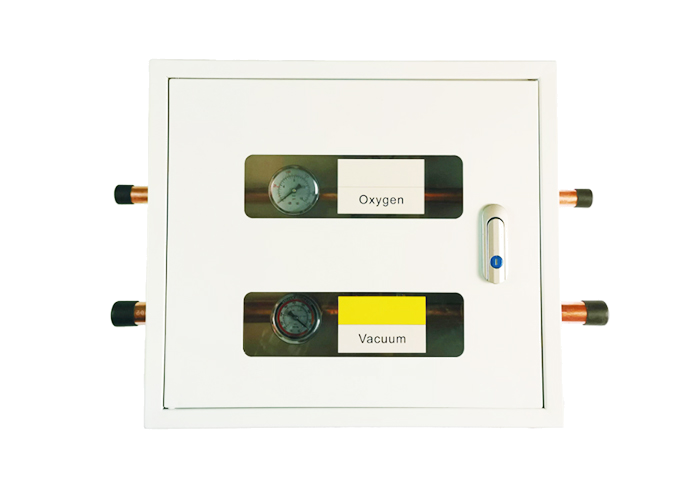

Surface Mounted Zone Valve Box

The front assembly is an easly removable cover window with pul ring. The window conceal the piping and valves inside the box and abeled “caution – MedicaGas shut OffValves – Close Only in Emergency” Placement ofthe valves within the zone valve box shall be such that the removable window cannot be replacedwhen any valve is closed.
Clear viewing space shall be provided in the window to display the gas service, the area controled by the valve, and the pressure gauges.

Specifications

• Sized up to 6 kinds of gases (Oxygen, Vacuum,Air, Nitrous Oxide, Carbon Dioxide, Evacuation)
• Tube size: customized (1/2″-3″)
• Provided with 60 diameter gauges
• Removable window with pull ring
• Color-coded labels for identity gas services
• Stainless-steel 3 pieces ball walves
• Silver brazed connection
• Easy access pull out window
• Unit of gauge available in PSl, MPA
