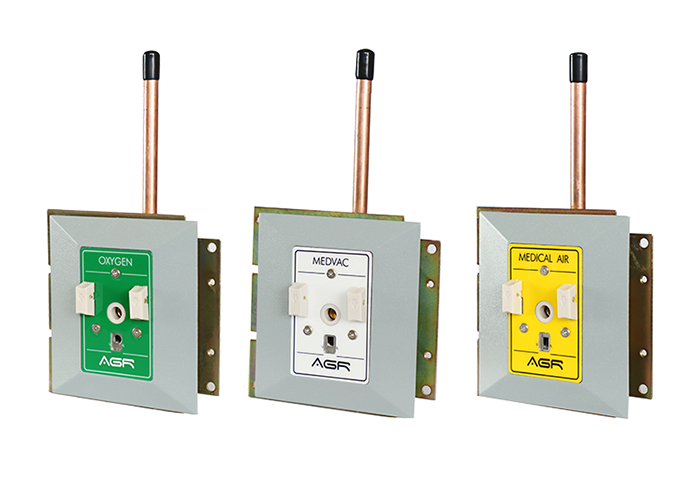

Chemetron Medical Gas Outlet main image
Medical Gas Outlet

Chemetron Medical Gas Outlet

Chemetron medical gas outlets are supplied for hospital oxygen, medical air, vacuum and N2O points requiring Chemetron-style gas-specific connections. Spec

Request Quote WhatsApp Back to Category

Chemetron Medical Gas Outlet

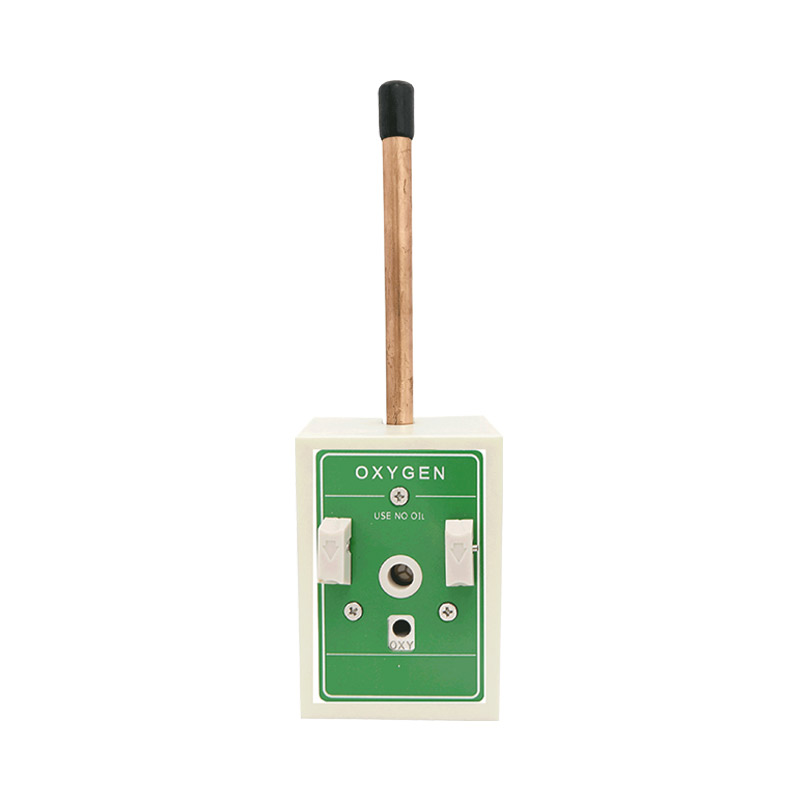

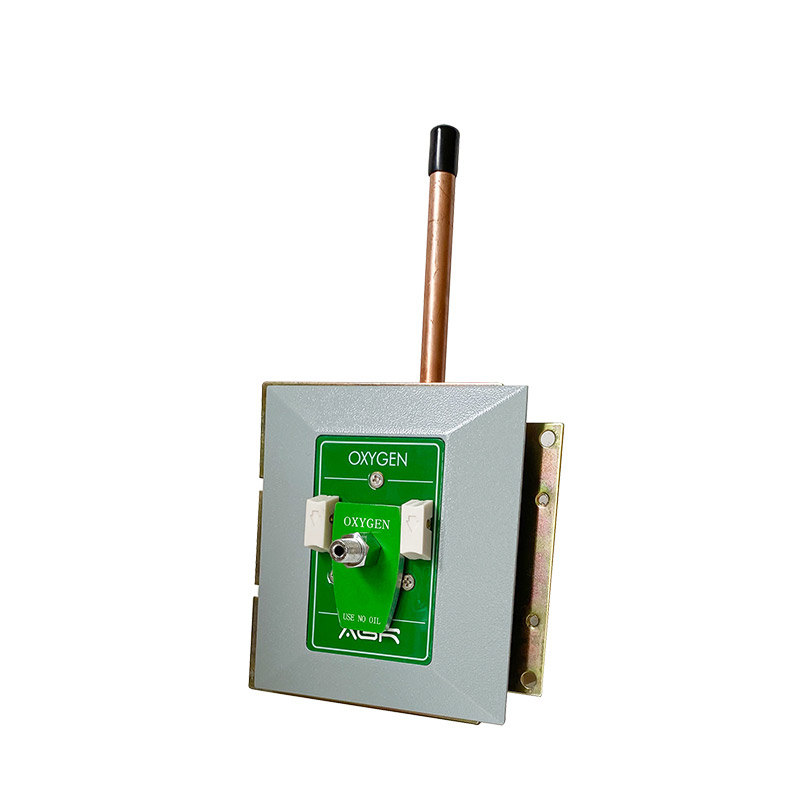

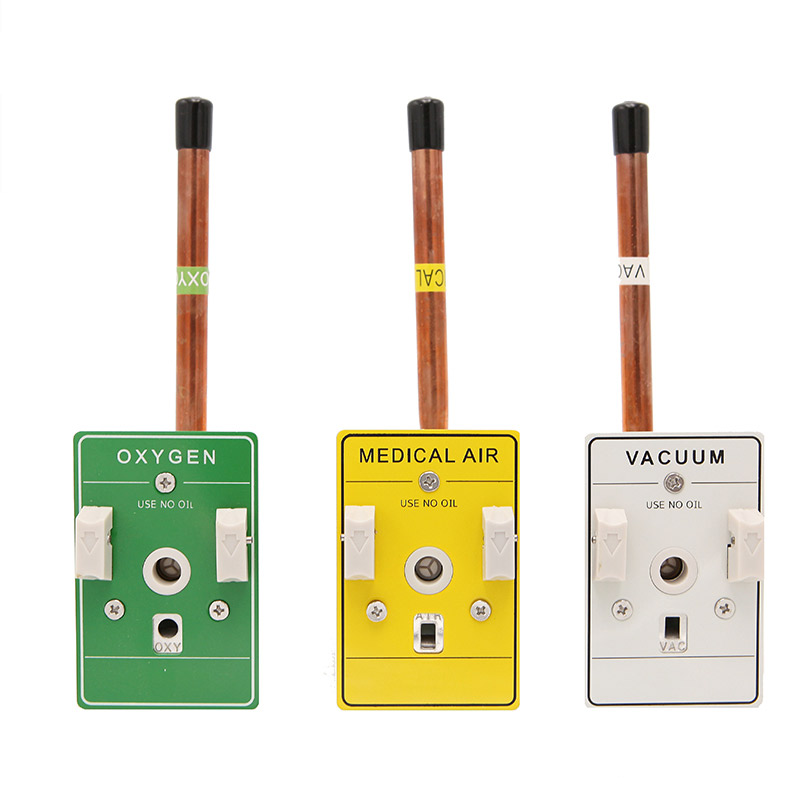

Chemetron medical gas outlets are supplied for hospital oxygen, medical air, vacuum and N2O points requiring Chemetron-style gas-specific connections.

Specifications

  • Complies with NFPA 99 and CGA Standard
  • 360° swivel inlet pipe for easy installation
  • Insertion and extraction 10000 times without failure
  • Working pressure: 4-8bar
  • O.D. Size: 8mm, 10mm, 12mm K type copper pipeline
  • 100% pressure and leak-tested, can be used safely and securely
  • The outlet with two-stage one-way valve for easy maintenance without cutting gas supply
  • NFPA full-color standard for easy gas identification and the gas name is marked on the outlet bracket and chrome-plated brass outlet valve body, avoid installation or use errors
  • Accepts only Chemetron gas connection fitting
Buyer Specification

Chemetron Medical Gas Outlet Procurement Points

Quick-connect standard for oxygen, air, vacuum and N2O project requirements.

Available gasesOxygen, Medical Air, Vacuum, N2O, CO2, AGSS
InstallationWall, bed head unit, pendant, ceiling or rough-in assembly
Pipe sizeO.D. 8mm / 10mm / 12mm copper pipe, custom options on request
Quality checkFlow test, leak test, cleaning and individual packaging

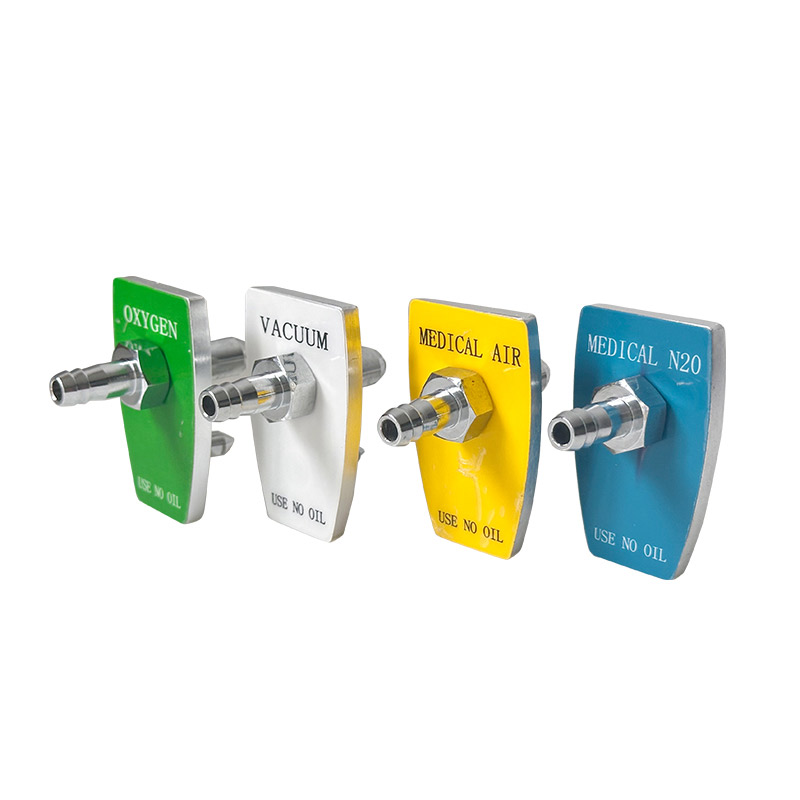

CompatibilityGas-specific probe, adapter and front assembly must match the project standard
FAQ

Questions Buyers Usually Ask Before Ordering

Can AGR Medical supply Chemetron medical gas outlets for different gases?

Yes. AGR Medical supplies medical gas outlets for oxygen, medical air, vacuum, N2O, CO2 and AGSS project requirements. Please confirm the required gas type and local standard before quotation.

What information is needed for a fast quotation?

Please send the outlet standard, gas type, quantity, installation position, copper pipe size, destination country and photos of existing probes or outlets if this is a replacement project.

Can the outlet be used on a wall, bed head unit or medical pendant?

Most medical gas outlets can be supplied for wall mounting, bed head unit installation, pendant installation or rough-in assembly according to the project requirement.
