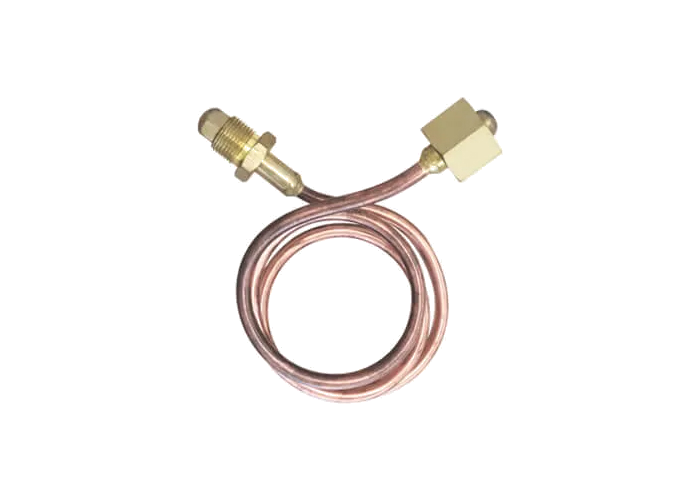

Copper High Pressure Pigtails
AGR copper high pressure pigtails are welded, polished, and electroplated from high pressure copper pipes. The connectors at both ends are made of copper.
Specifications
- Connector standard: CGA4.1 and ISO15001 Standard
- Maximum working pressure 3,000 psi
- Burst pressure rating at room temperature: 12,000 psig
- Length is customizable
- 100% tested before leaving the factory
