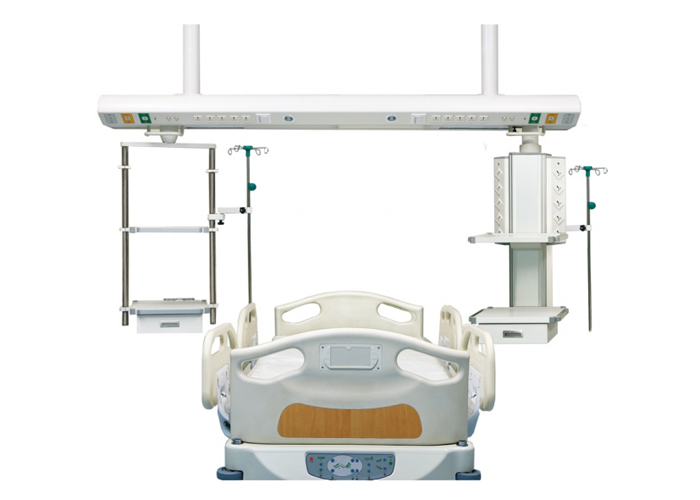

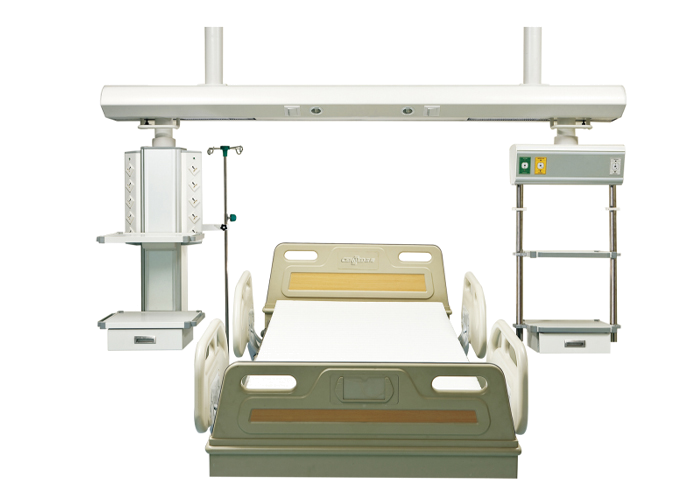

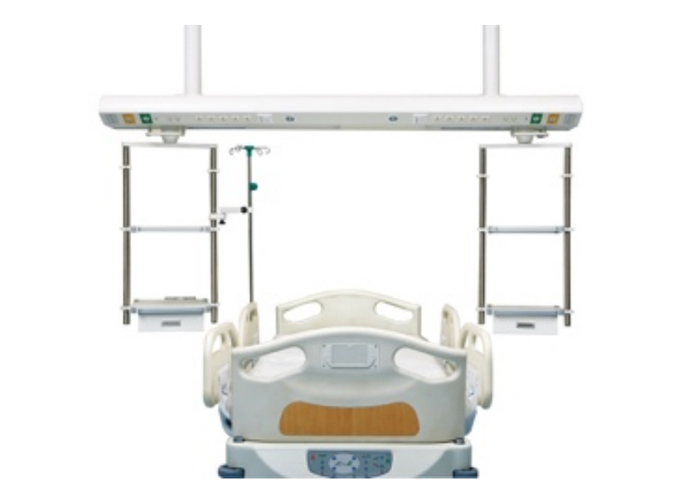

ICU Dry-wet Separation C Series Bridge
Designed specially for ICU, rescue and recovery room, integrate majority of treatment and healthy care equipment, and centralized supply gas and electricity.
Wet and dry separation design, medical equipment can be accessed from any side of the patient. Can move aside quickly if don’t use, providing the largest rescue place.
All closed tower design, create a clean environment, reduce the incidence of cross infection, improve the cure rate.
Gas and electricity layout separated on the main girder and dry side, more convenient accessing for medical care person.
Specifications
- ICU Dry-wet Unity Medical Column
- The 340-degree range of arm rotation
- Length : 2400-2800mm (can customized according to request)
- Aluminum profile, electrical device separated in the cabinet
- Ceiling plate support system
- Mechanic brake (Optional pneumatic brake)
- Load capability: 200 kg
- Shelf loading : ≤80kg
- Electricity : 220V, 50Hz ;110V, 60Hz
- More monitor tables, gas outlet, electric and drawers can be adjusted according to customer needs.
- Standard Configuration
- Auxiliary lighting : 1pcs
- Light switch : 1 pcs
- Night lighting : 1 pcs
- Dry Side
- Functional Hanger with arm : 1 set
- Length of fuction hanger : 1000mm
- Length of arm : 350mm
- Rotating angles : 340°
- Movement distance : 500mm
- Electrical Socket: 5pcs
- Shelves : 2pcs
- Drawer ：1pcs
- RJ15 : 1pcs
- RJ45 : 1 pcs
- Wet Side
- Pedestal assembly : 1 set
- Length of pedestal :1000mm
- Length of arm : 350mm
- Rotating angles : 340°
- Movement distance : 500mm
- Grounding Terminal: 2pcs (With grounding cables)
- Electrical Socket: 10pcs Universal 3-Pin socket
- Medical Shelves: 2pcs (Size: 400*450mm)
- Drawer: 1pcs
- IV Pole: 1pcs(Extension arm optional)
- Storage Basket: 1pcs(SUS304, 146*156*246mm)
- Rj15: 1pcs
- Rj45: 1pcs
