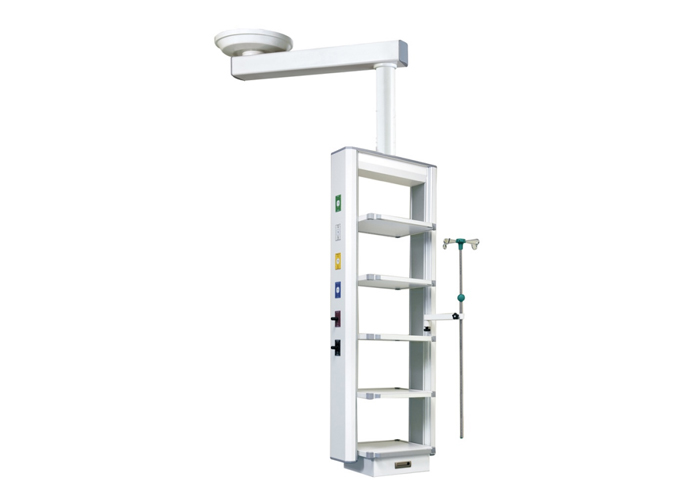

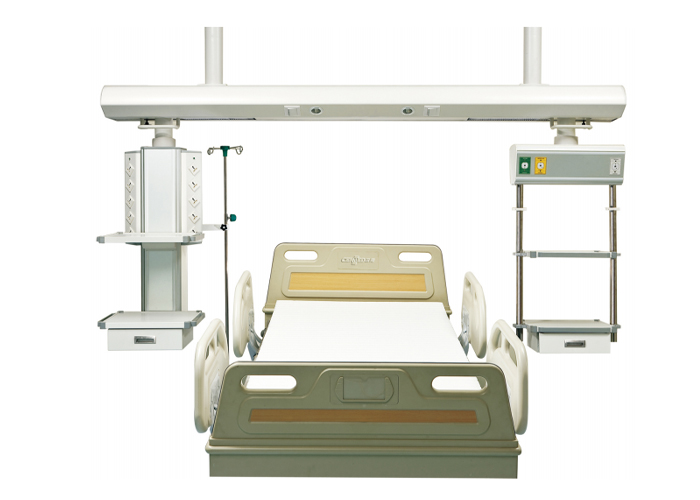

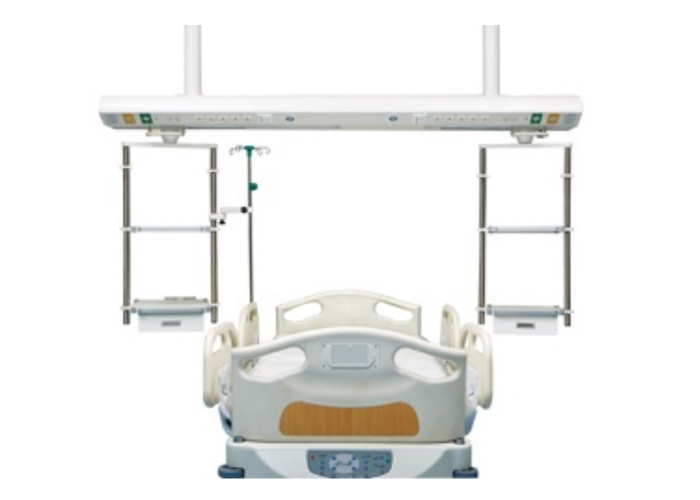

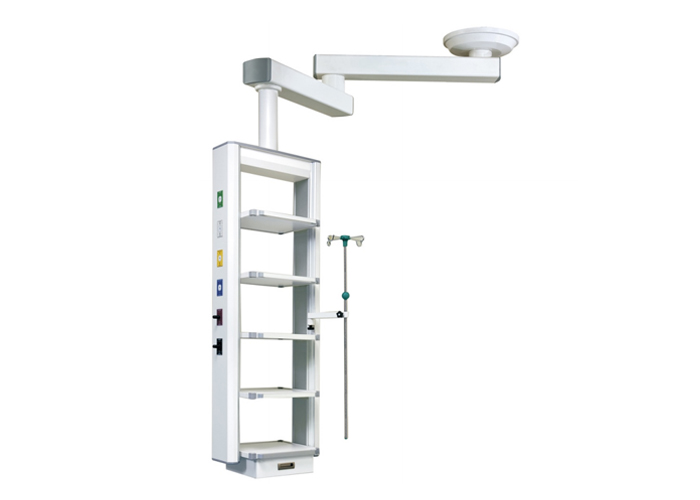

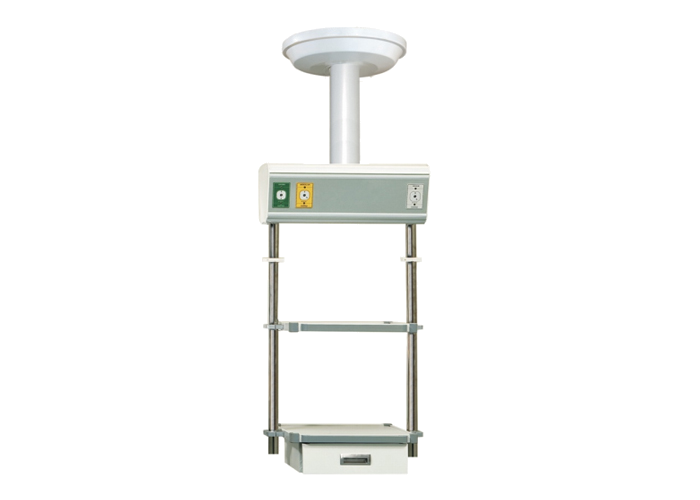

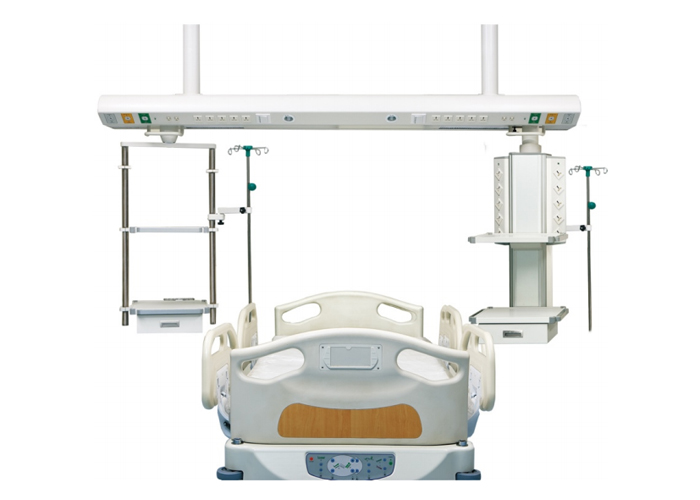

ICU Dry-wet Unity Medical Column
Designed specially for ICU, rescue and recovery room, function hanger structure separate gas and electricity, equipped with 2 shelves or more shelves, simply appearance,
one column for each bed.
It can be fitted with a large range of accessories: infusion rack, platform, metal basket, light, telephone output, medical rail, or other accessories upon needs &
requirements of the workplace concerned.
Specifications
- ICU Dry-wet Unity Medical Column
- The 340-degree range of arm rotation
- Height of Hanger assembly : 1100mm
- Aluminum profile, electrical device separated in the cabinet
- Ceiling plate support system
- Mechanic brake (Optional pneumatic brake)
- Load capability: 200 kg
- Shelf loading : ≤80kg
- Electricity : 220V, 50Hz ;110V, 60Hz
- More monitor tables, gas outlet, electric and drawers can be adjusted according to customer needs.
- Standard Configuration
- Electrical Socket: 10pcs Universal 3-Pin socket
- Grounding Terminal: 2pcs (With grounding cables)
- Medical Shelves: 2pcs (Size: 400*450mm)
- Drawer: 1pcs
- IV Pole: 1pcs(Extension arm optional)
- Storage Basket: 1pcs(SUS304, 146*156*246mm)
- Rj15: 1pcs
- Rj45: 1pcs
- Gas outlets: 4pcs
- Flange not included
