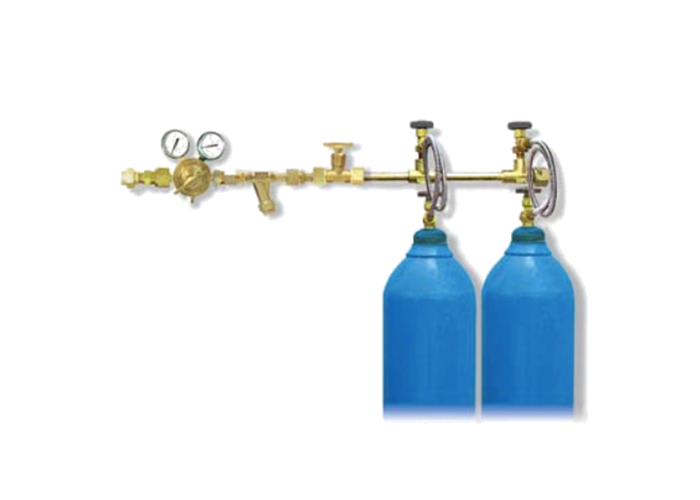

S-38X Manual Manifold system
Manual manifold main use at small and medium hospitals. When using the manifold, several cylinders need to be connected to the manifold pipeline. The medical gas is first filtered and decompressed, and then transported through the main pipe to the end of use.
S-38X is equipped with two pressure reducers. Open type manifold connector cylinder number according to the client request.
Specifications
- Applicable gas: O2, Air, CO2, N2, and N2O, etc.
- Max flow: 100 m3/h
- Pass the pressurization testing, welded in silver, much safety and stable
- Wall mount simplifies installation, easily installed
- CGA4.1 and ISO15001 Standard
- The size of the connecting hose is customized
- Maximum inlet pressure: 200Mpa
