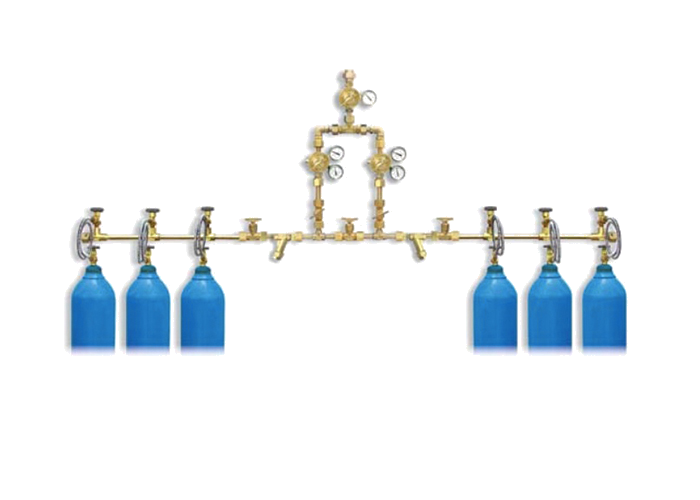

S-58X Manual Manifold system
The medical semi-automatic cylinder manifold is equipped with dual pressure reducers to ensure that the manifold can operate normally when one of the pressure reducers fails.
Medical gas is first filtered and decompressed by the manifold and then transported through the main pipe to the end of use. The function of the secondary regulator is to stabilize the outlet gas flow of the main pipeline. CGA standard adapter port and inlet connection thread.
Specifications
- Applicable gas: O2, Air, CO2, N2, and N2O, etc.
- High flow capacity regulator
- Open style cylinder number according to the client request
- Pass the pressurization testing, welded in silver, much safety and stable
- Wall mount simplifies installation, easy installed
- Size of the connecting hose is customized
- Maximum pressure 3,000 psi
- CGA4.1 and ISO15001 Standard
