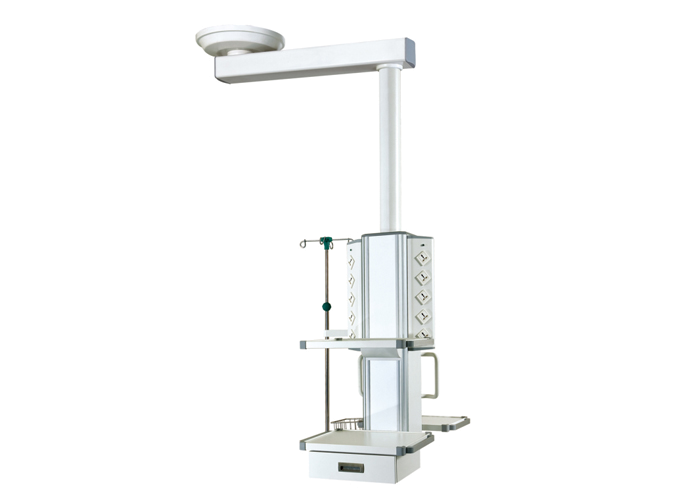

Sigle Arm Surgical Pendant
Surgical pendant as the preferred surgical anesthetic tower in the operating room, economical, there is single and double arm optional to suitable for different sizes of operating theatres and rescue room, recovery room, ICU etc., one bed tower.
It can be fitted with a large range of accessories: infusion rack, platform, metal basket, light, telephone output, medical rail, or other accessories upon needs &
requirements of the workplace concerned.
Specifications
- Single Arm Rotary Surgical Medical Pendant
- The 340-degree range of arm rotation
- One horizontal arm (900 mm) adjustable dimensions
- Aluminum profile, electrical device separated in the cabinet
- Ceiling plate support system
- Mechanic brake (Optional pneumatic brake)
- Load capability: 220 kg
- More monitor tables, gas outlet, electric and drawers can be adjusted according to customer needs.
- Standard Configuration
- Electrical Socket: 10pcs Universal 3-Pin socket
- Grounding Terminal: 2pcs (With grounding cables)
- Medical Shelves: 3pcs (Size: 400*450mm)
- Drawer: 1pcs
- IV Pole: 1pcs(Extension arm optional)
- Storage Basket: 1pcs(SUS304, 146*156*246mm)
- Rj15: 1pcs
- Rj45: 1pcs
- Gas outlets: 4pcs
- Flange not included
